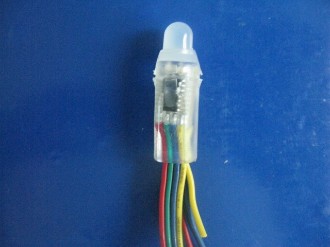

LED module light Series #:HX-OF8F-5 Super bright F8mm RGB lamp |  |
General:
1. Epoxy shell, 12mm diameter.
2. IP67 waterproof.
2. 8/10mm gray and white wire.
3. Epistar chip F8mm 3in1 RGB lamp as light source.
Technical:
1. Input: DC5V an power supply is need.
2. Power: 0.3W/pcs.
3. F8mm 3in1 RGB lamp DIP as light source.
4. Output: 13lm @mixed white
5. Lifespan: 5000+Hours
Packing:
1. 20/50pcs as a string
2. 50pcs in a anti-static bag.
3. 20~50bags in a carton.
Application:
1. channel letter light source.
2. light box light source.
Installation:
1. Red wire for red chip, green wire for green chip, blue wire for blue chip, Yellow wire for anode.
2. Screw through specific 12mm daimeter hole.
Note:
1. RGB solution, control by a controller, make 11 effect.
Check the specification below:(copyright reserved@Shenzhen Hongxing Lighting Co.,Ltd)
|
Highsong RGB open light1.pdf Size : 436.017 Kb Type : pdf |
