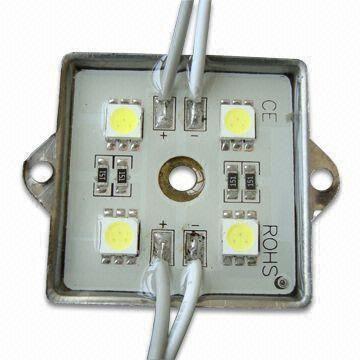

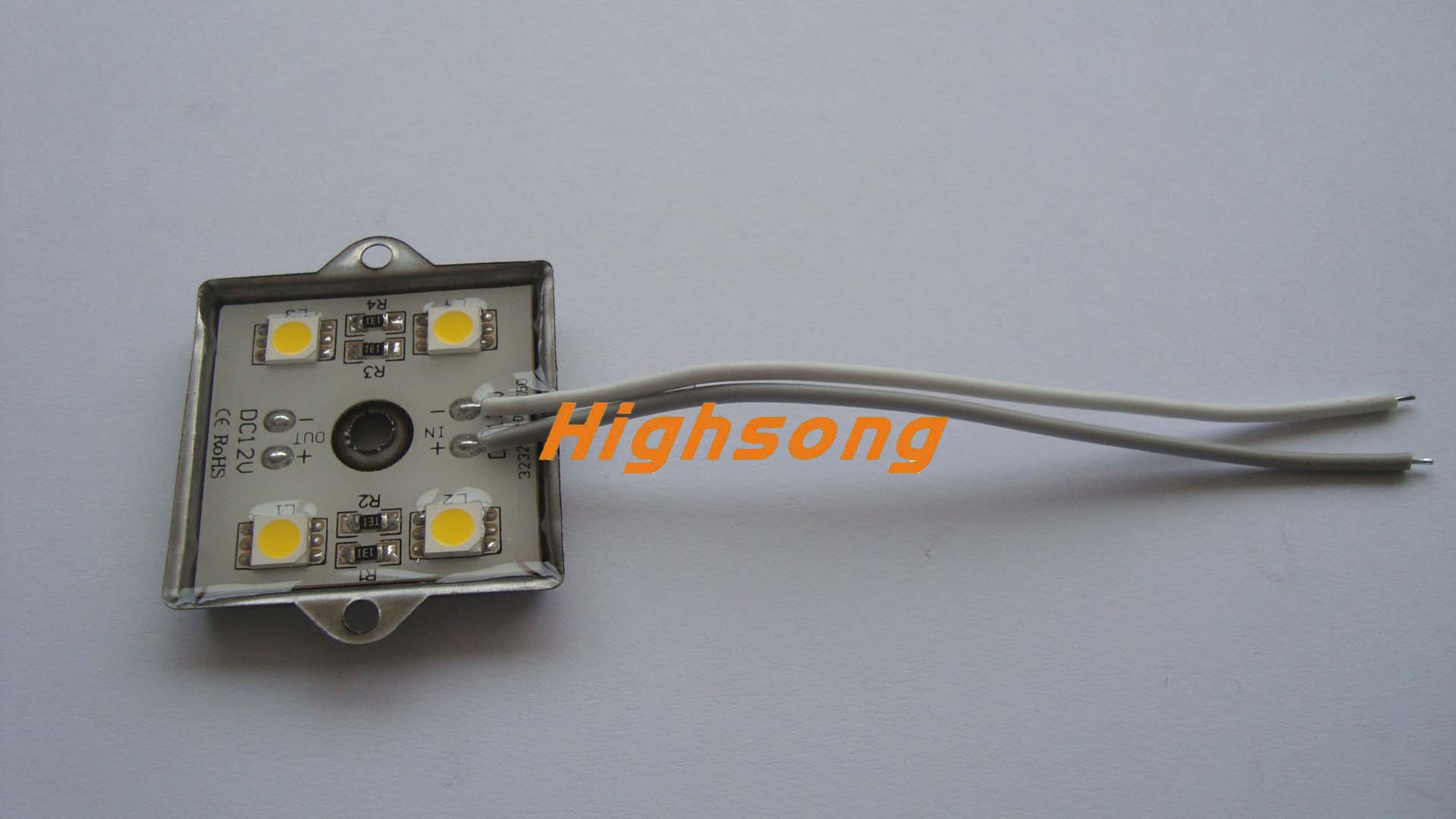

LED module light Series #:HX-M5050W4P-12 Super bright SMD5050 4in1 module light |  |
General:

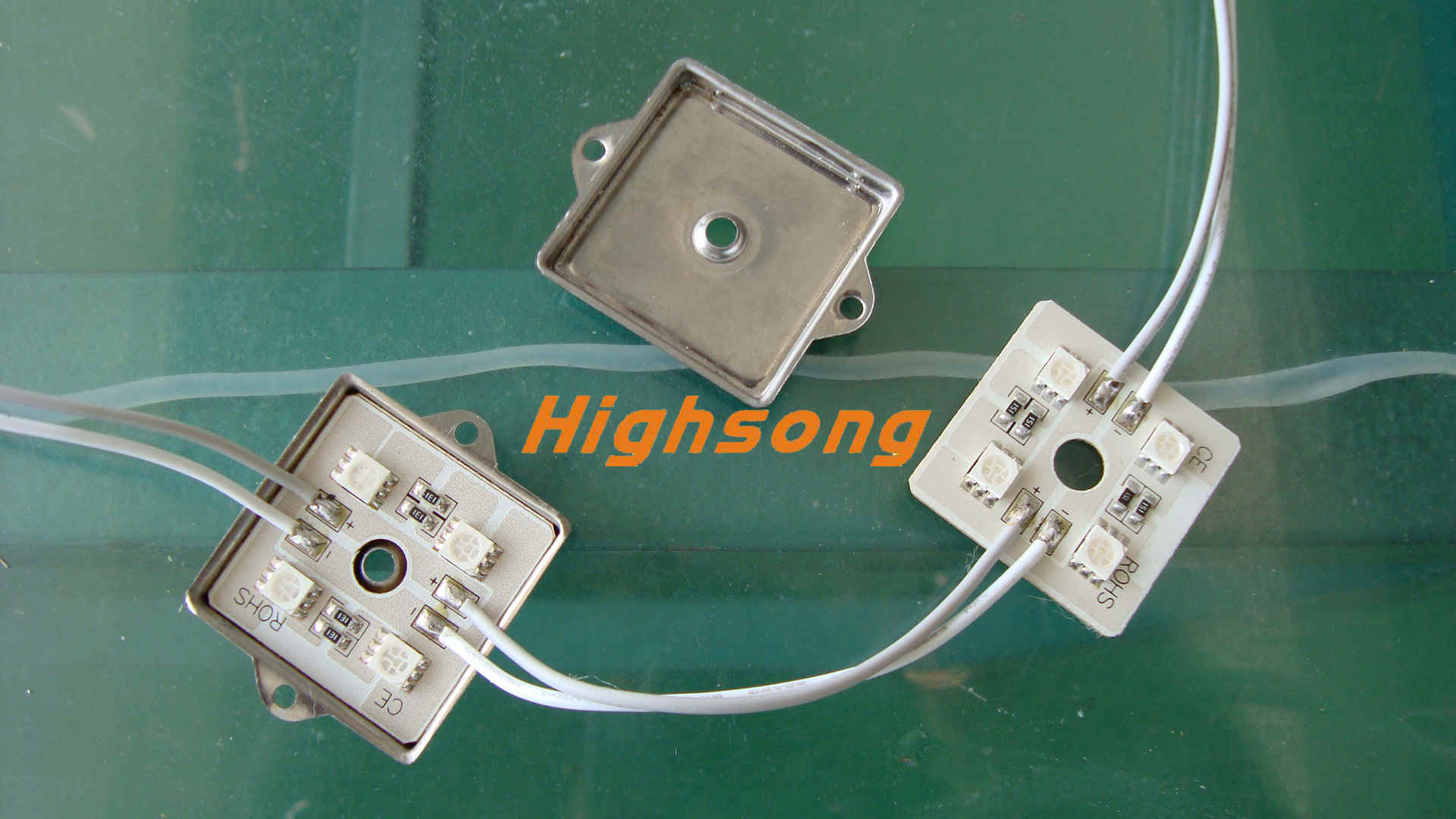

1. Iron shell, 35*35mm
2. Epoxy cover, IP67 waterproof.
2. 8/10mm gray and white wire.
3. Epistar chip SMD5050 4in1 as light source.
Technical:
1. Input: DC12V an power supply is need.
2. Power: 1.44W/pcs.
3. SMD5050 4in1 as light source.

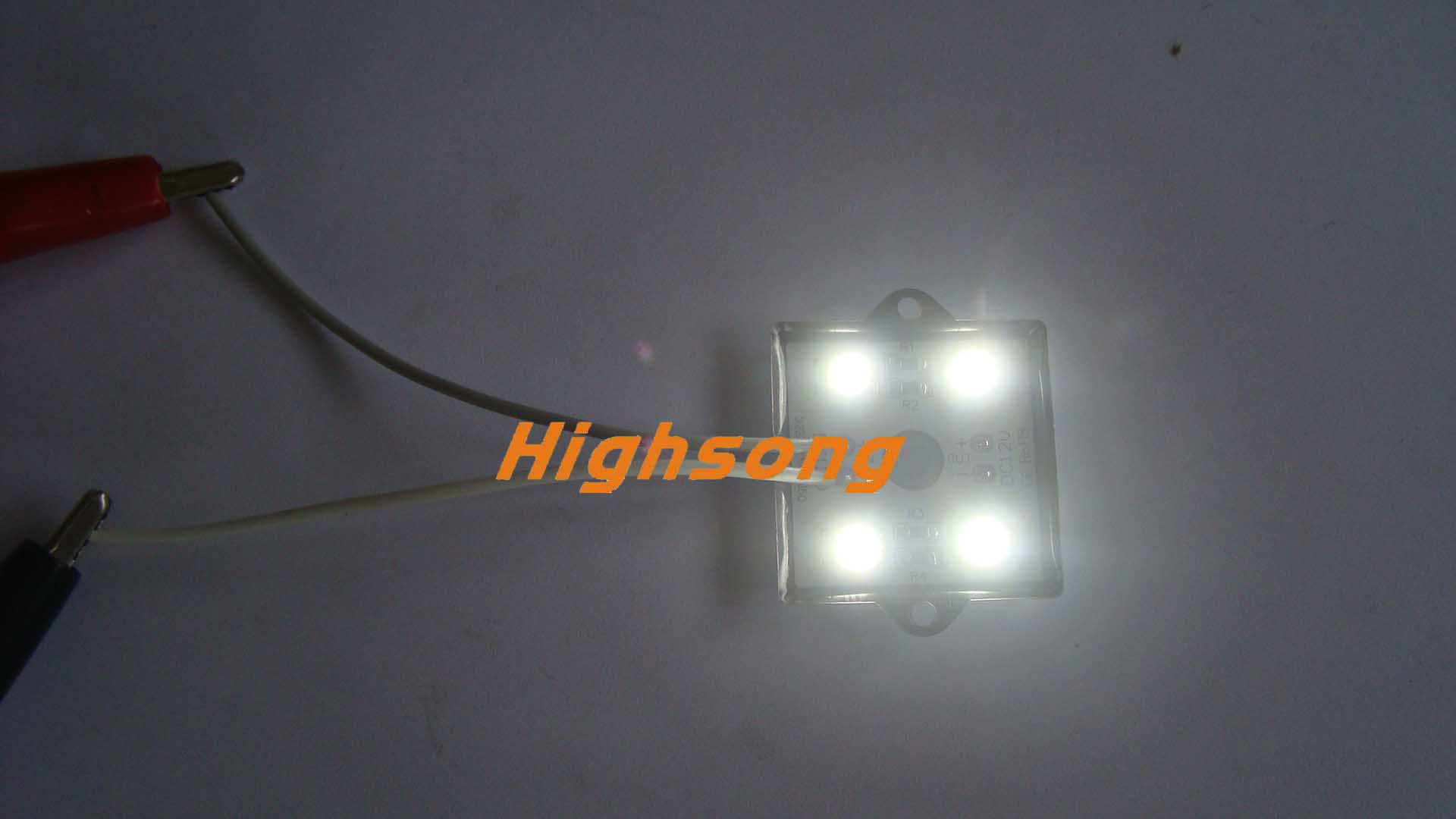

4. Output: 54lm @pure white 6500K
5. Lifespan: 5000+Hours
Packing:
1. 20/50pcs as a string
2. 50pcs in a anti-static bag.
3. 20~50bags in a carton.
Application:
1. channel letter light source.
2. light box light source.
Installation:
1. Double side adhere 3M tape on the back.
2. Screw through the screw hole.
Note:

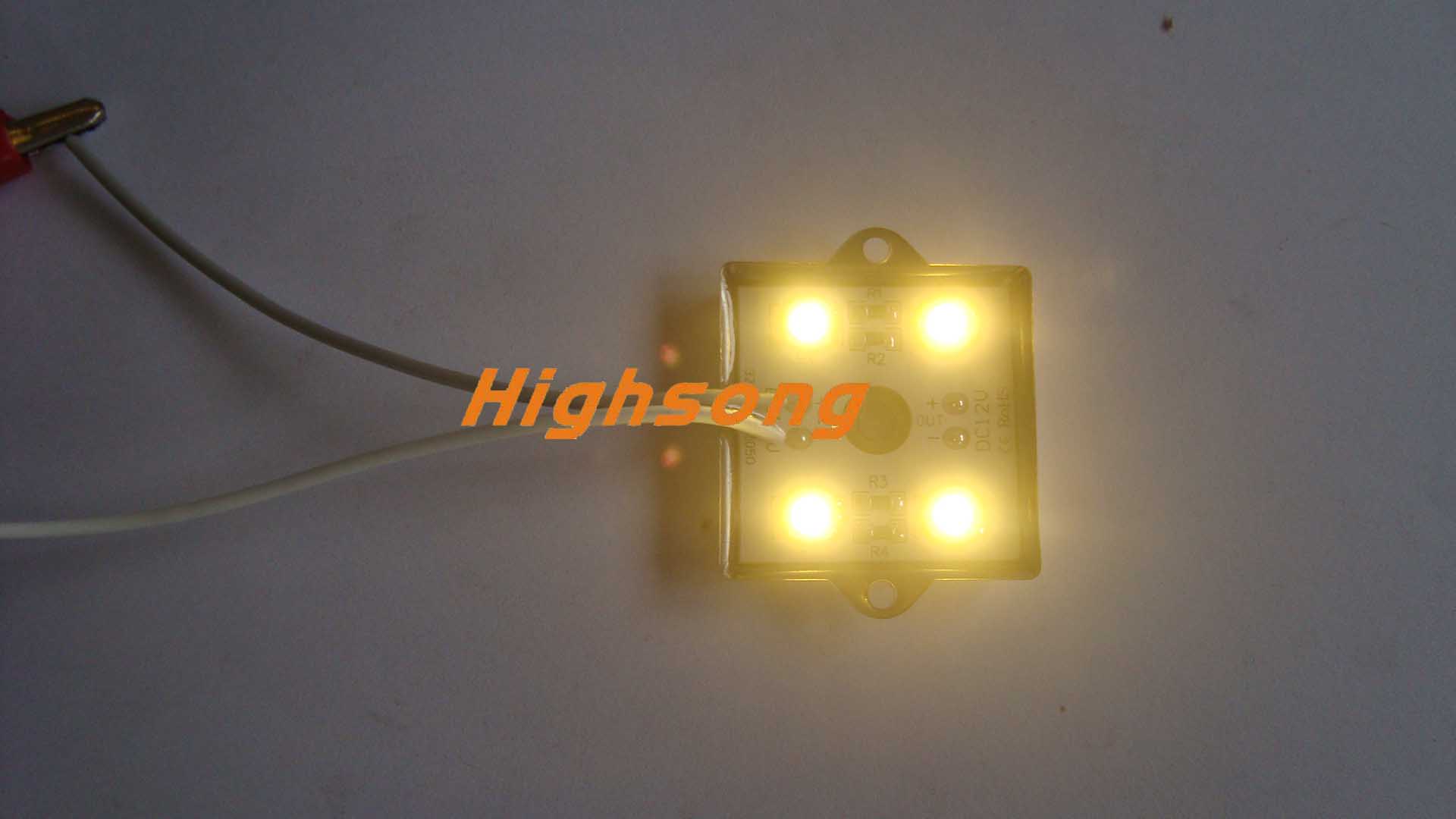

1. Single color: Red/ Green/ Blue/ Yellow/ White(2700~13000K) all available.
2. Special color like Purple/ Pink/ Orange all available.
3. RGB solution, or RGB with smart IC solution all available.
Check the specification below:(copyright reserved@Shenzhen Hongxing Lighting Co.,Ltd)
|
Highsong 4in1 LED module light.pdf Size : 1682.256 Kb Type : pdf |
