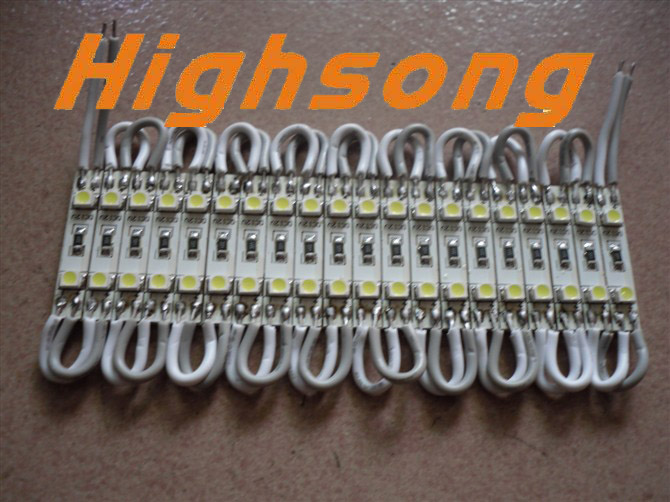

Mimi LED module light hot! Series #:HX-M3528W2P-12 Super bright SMD3528 2in1 module light mini for slim letter
|  |
General:
1. PVC shell, 27*05mm, thin in 3mm
2. Epoxy cover, IP67 waterproof.
2. 8mm gray and white wire.
3. Epistar chip SMD3528 2in1 as light source.
Technical:
1. Input: DC12V an power supply is need.
2. Power: 0.2W/pcs.
3. 2 pcs SMD3528 as light source.
4. Output: 9lm @pure white 6500K
5. Lifespan: 5000+Hours
Packing:
1. 20/50pcs as a string
2. 500pcs in a anti-static bag.
3. 20~50bags in a carton.
Application:
1. Channel letter light source, specific for slim and small letter solution!
2. Light box light source.
Installation:
1. Double side adhere 3M tape on the back.
2. Glass glue adhere.
Note:
1. Single color: Red/ Green/ Blue/ Yellow/ White(2700~13000K) all available.
2. Special color like Purple/ Pink/ Orange all available.
Check the specification below:(copyright reserved@Shenzhen Hongxing Lighting Co.,Ltd)
|
Highsong 2in1 mini LED module light.pdf Size : 438.946 Kb Type : pdf |
