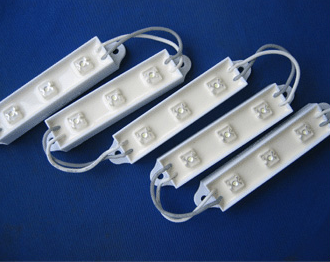

Mimi LED module light hot Series #:HX-MF5W3P-12 Super bright SMD3528 2in1 module light mini for slim letter |  |
General:
1. PVC shell, 75*12mm
2. Epoxy cover, IP67 waterproof.
2. 8mm gray and white wire.
3. Epistar chip super flux 3in1 as light source.
Technical:
1. Input: DC12V an power supply is need.
2. Power: 0.24W/pcs.
3. 3 pcs super flux as light source.
4. Output: 6lm @pure white 6500K
5. Lifespan: 5000+Hours
Packing:

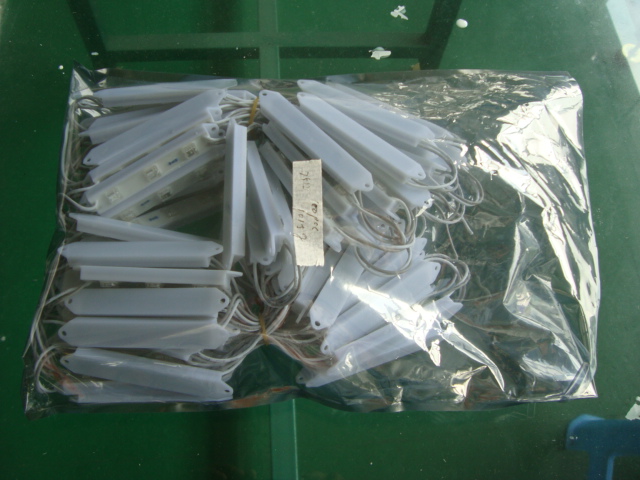

1. 20/50pcs as a string
2. 50pcs in a anti-static bag.
3. 20~50bags in a carton.
Application:
1. channel letter light source, standard type, best cost performance solution!
2. light box light source.
Installation:
1. Double side adhere 3M tape on the back.
2. Glass glue adhere.
3. Screw hole.
Note:
1. Single color: Red/ Green/ Blue/ Yellow/ White(2700~13000K) all available.
2. Special color like Purple/ Pink/ Orange all available.
Check the specification below:
|
Highsong super flux 3in1 LED module light.pdf Size : 442.487 Kb Type : pdf |
We are doing our best to show you a good LED lighting world, if you got any good suggestion, we will appreciate your kindly help. we are not show our visitor ONLY about us, we also glad to show you LED lighting and LED lighting in China. Contact us here.
