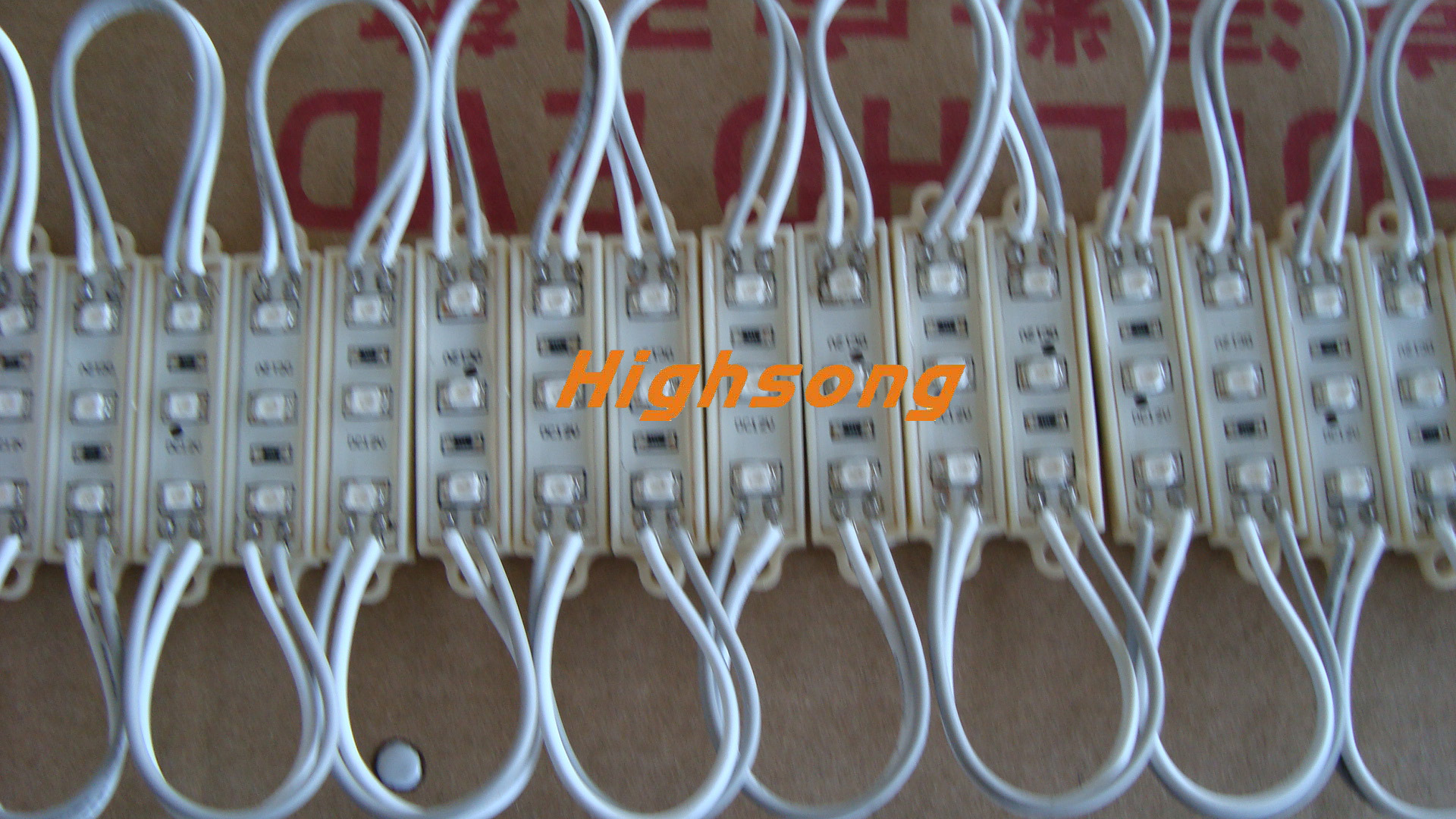

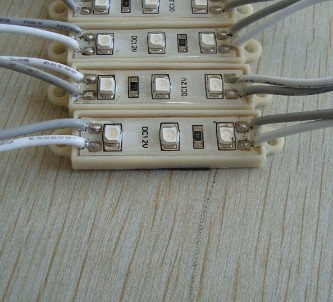

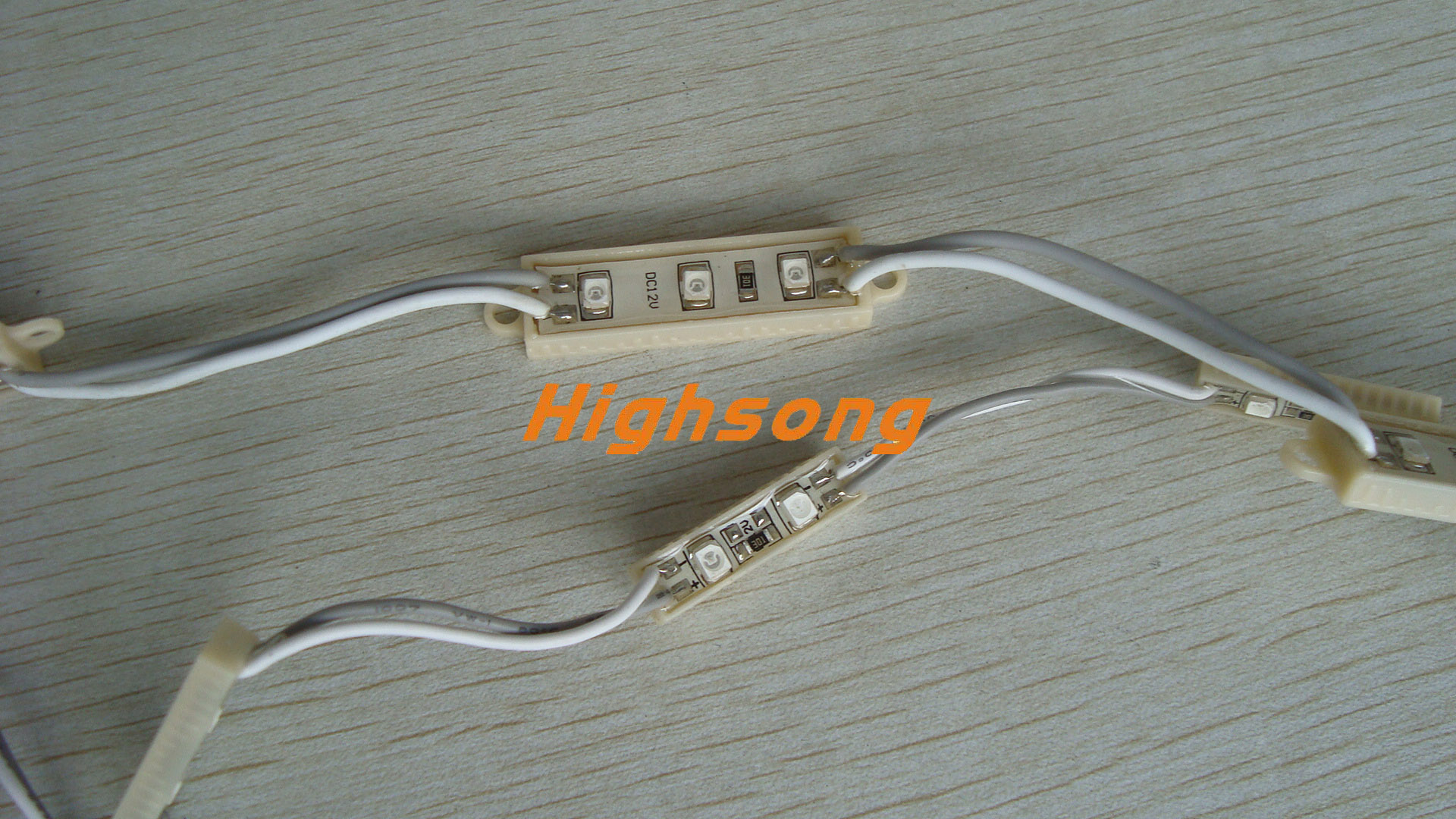

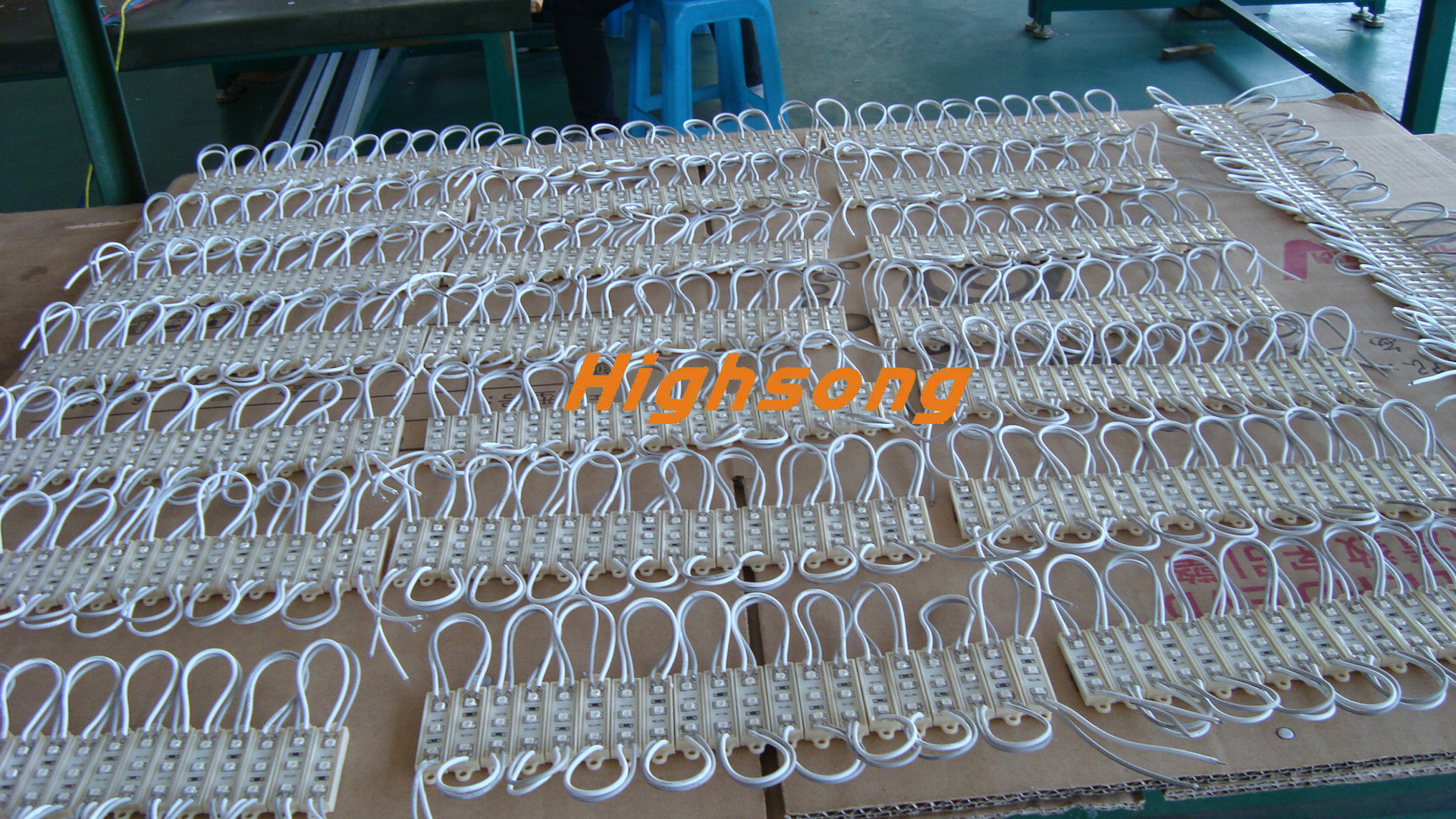

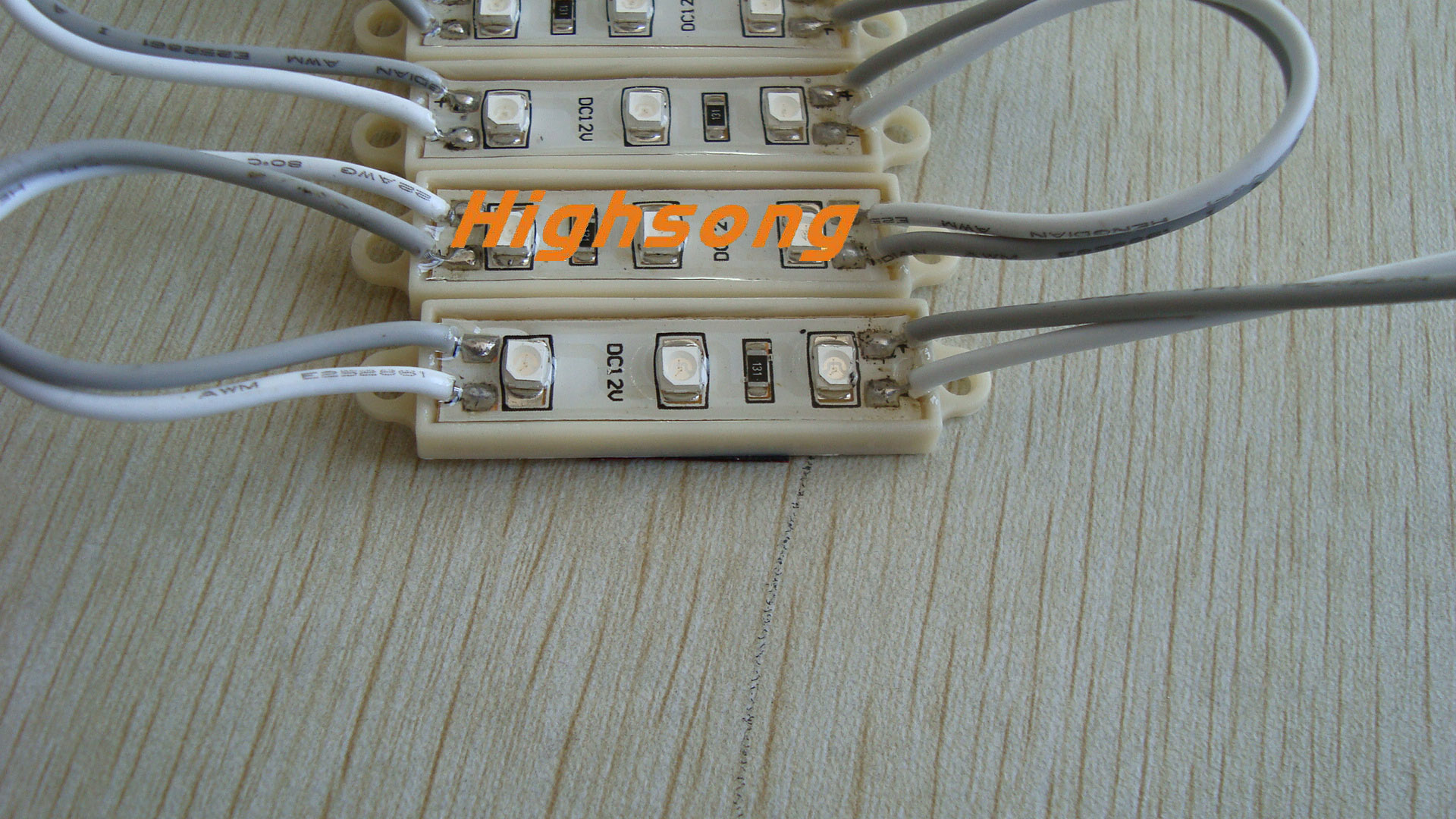

LED module light Series #:HX-M2538W3P-12 Super bright SMD3528 3in1 module light mini size
|  |
General:
1. Mini PVC shell, 36*09mm, for small and high bright requires letter.
2. Epoxy cover, IP67 waterproof.
2. 8/10mm gray and white wire.
3. Epistar chip SMD3528 4in1 as light source.
Technical:
1. Input: DC12V an power supply is need.
2. Power: 0.36W/pcs.
3. SMD3528 3in1 as light source.
4. Output: 14lm @pure white 6500K
5. Lifespan: 5000+Hours
Packing:
1. 20/50pcs as a string
2. 150pcs in a anti-static bag.
3. 50~70bags in a carton.
Application:
1. channel letter light source.
2. light box light source.
Installation:
1. Double side adhere 3M tape on the back.
2. Screw through the screw hole.
3. Glass glue adhere.
Note:
1. Single color: Red/ Green/ Blue/ Yellow/ White(2700~13000K) all available.
2. Special color like Purple/ Pink/ Orange all available.
3. RGB solution, or RGB with smart IC solution all available.
Check the specification below:(copyright reserved@Shenzhen Hongxing Lighting Co.,Ltd)
|
Highsong 3in1 mini LED module light.pdf Size : 455.367 Kb Type : pdf |
