LED smart open light Series #:HX-OS6803-5 Smart IC DMX solution |  |
General:
1. Epoxy shell, 12mm diameter.
2. IP67 waterproof.
2. 8/10mm RGBY wire.
3. Epistar chip F8mm DIP RGB lamp as light source.
Technical:
1. Input: DC5V an power supply is need.
2. Power: 0.3W/pcs.
3. DIP LED as light source.
4. Output: 14lm @mixed white
5. Suit with DMX control system.
6. Lifespan: 5000+Hours
Packing:
1. 20/50pcs as a string
2. 50pcs in a anti-static bag.
3. 20~50bags in a carton.
Application:

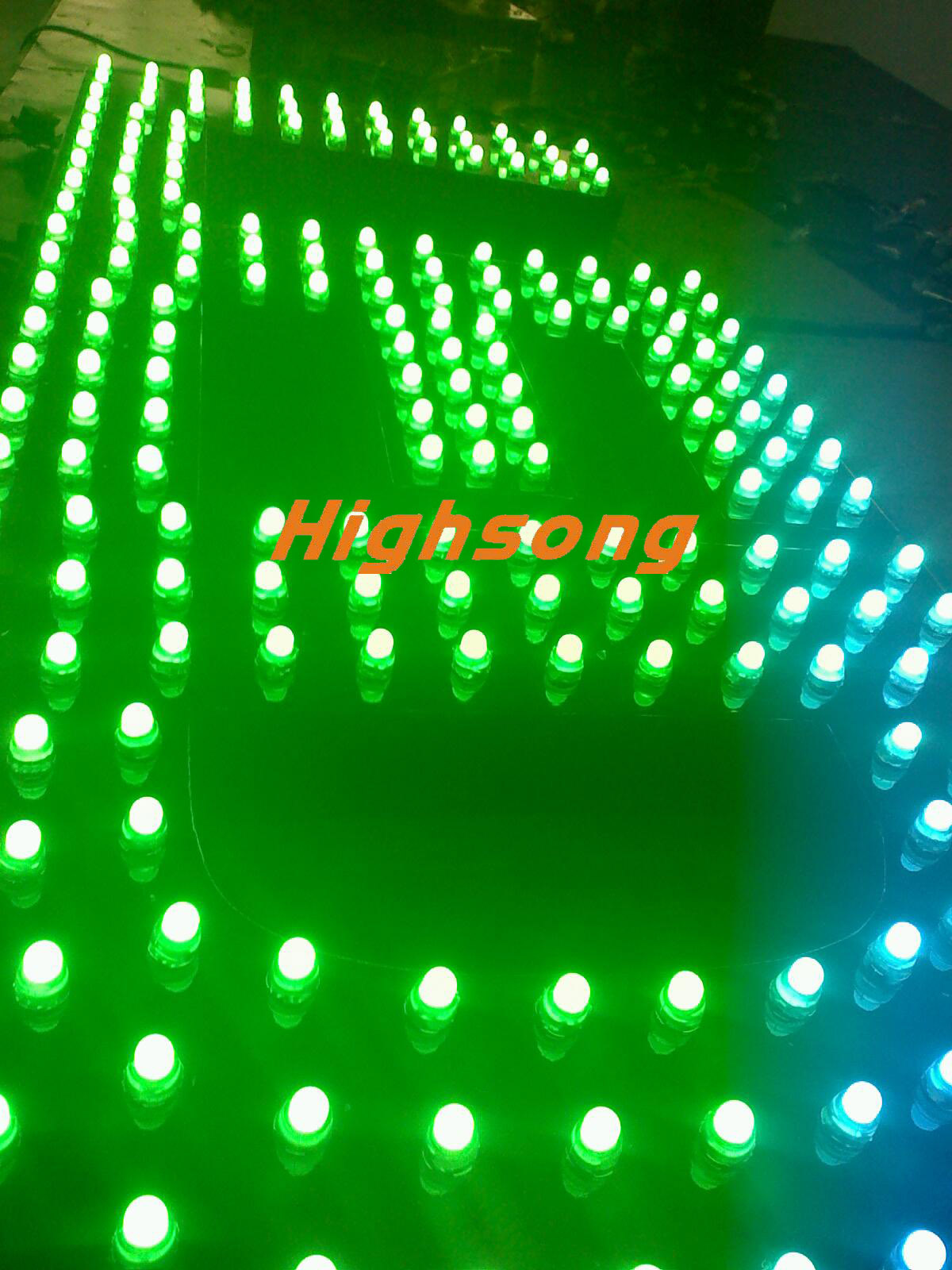

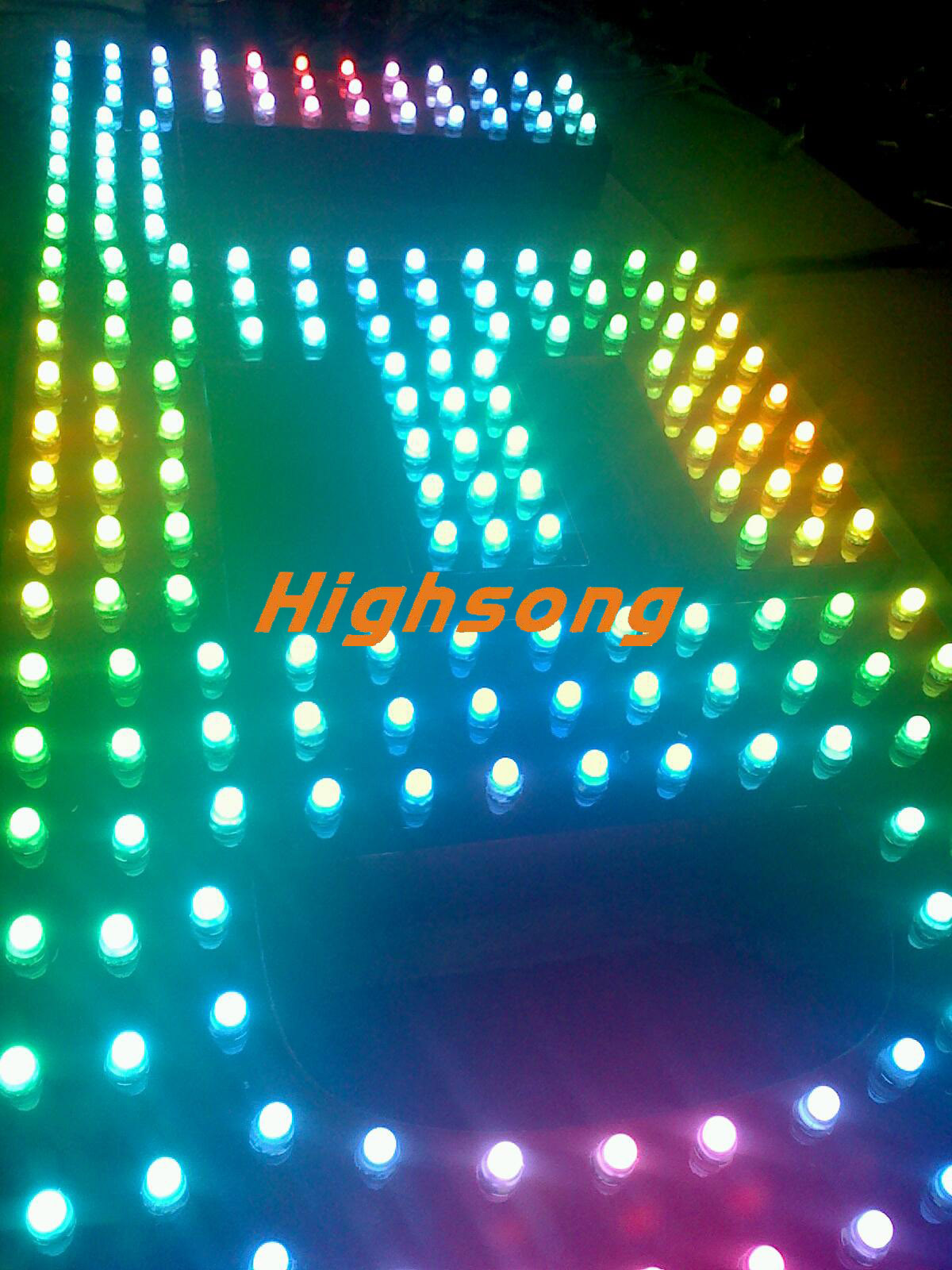

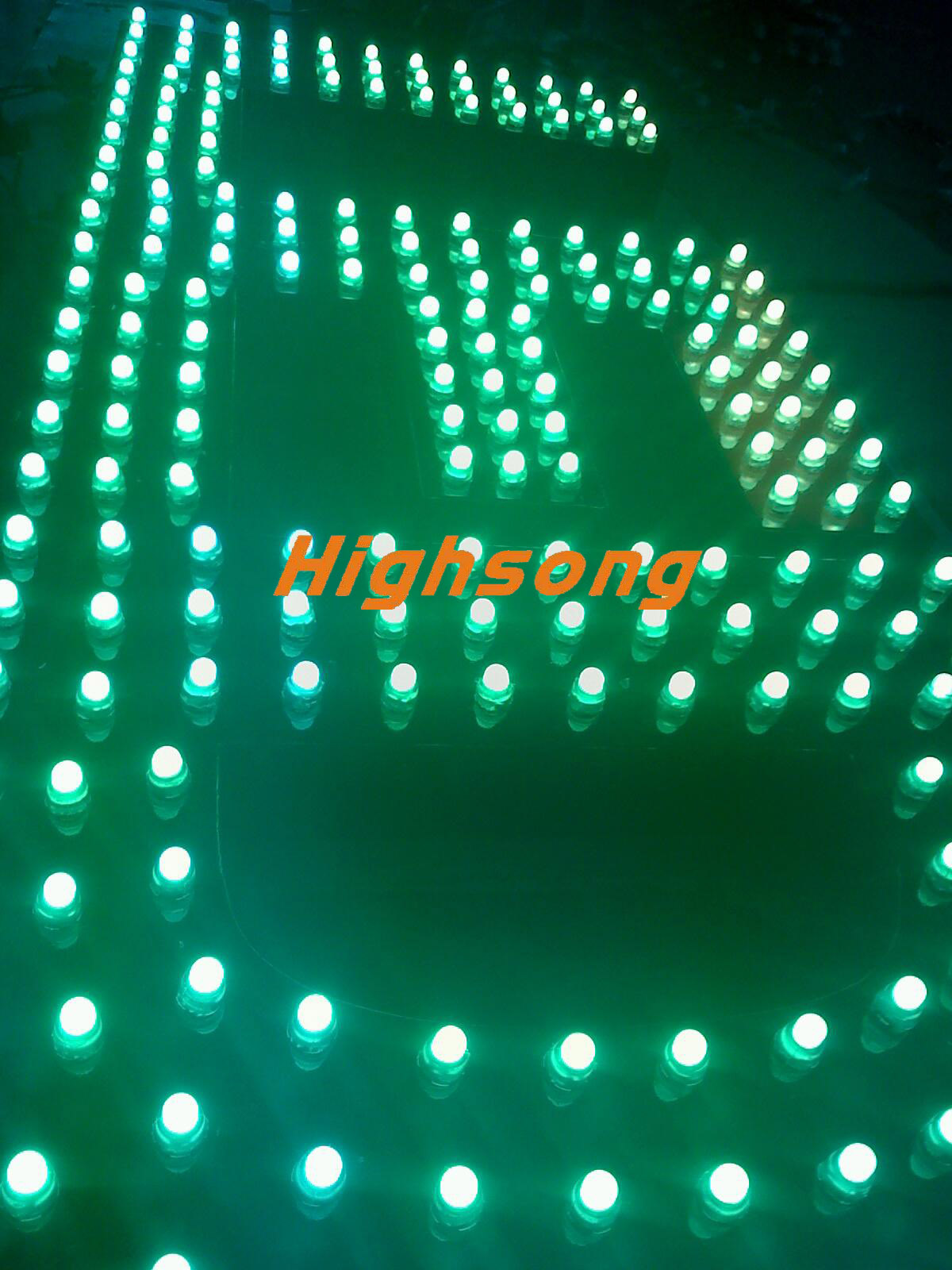

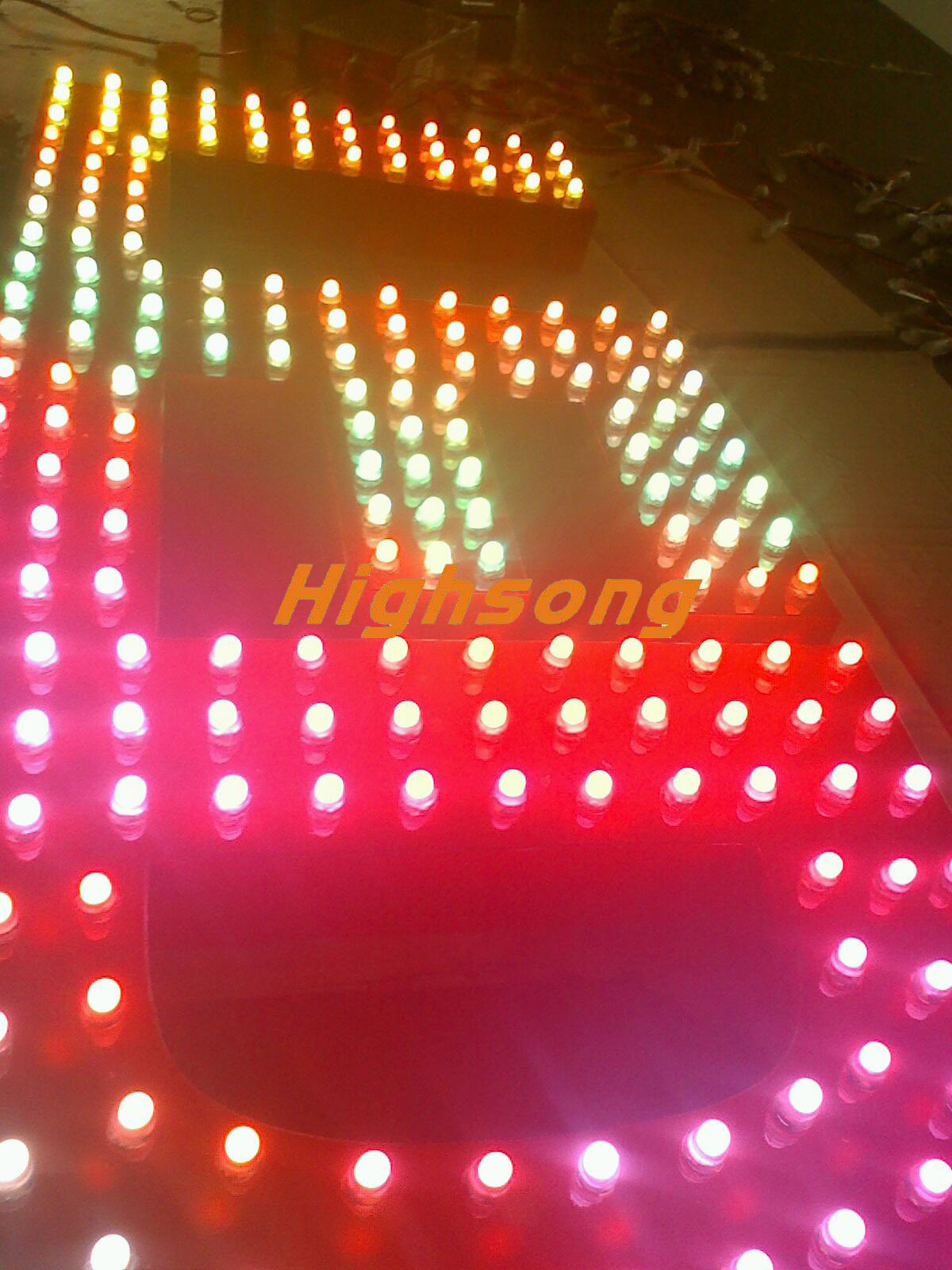

1. Lighting letter light source, color change letter.
2. Large and sparse matrix screen.
Installation:
1. Install through the specific hole in the letter or board.Note:
1. 3 mature solution for different grey scale require:
6803IC 32 grey scale
1803IC 256 grey scale
3001IC 4096 grey scale.
2. Light effect OEM available!.
