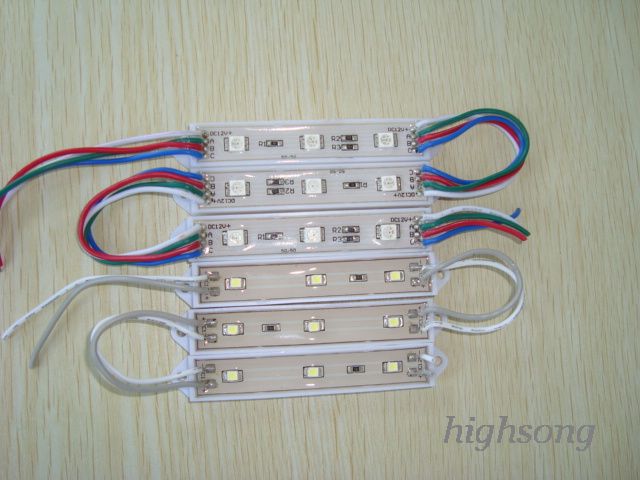

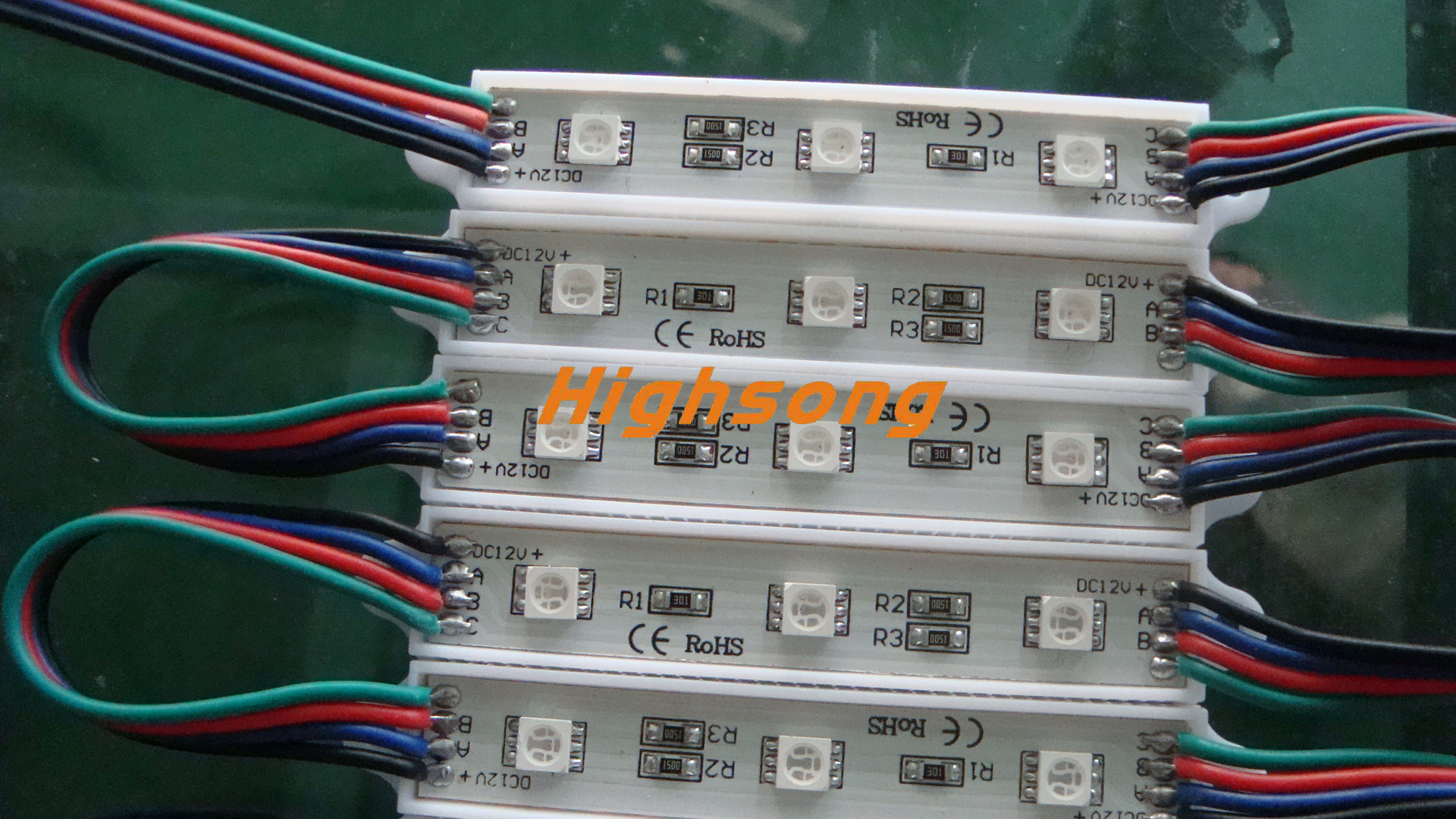

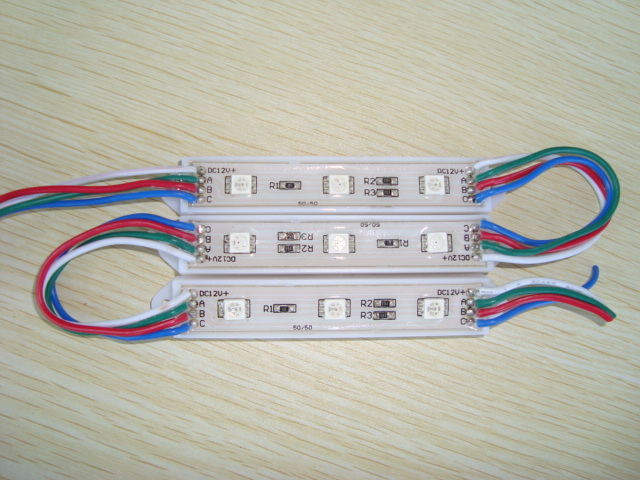

LED module light

Series #:HX-M5050W3P-12

Super bright SMD5050 3in1 module

RGB solution


General:

1. PVC shell, 75*12mm
2. Epoxy cover, IP67 waterproof.
2. 8/10mm color 4 r/g/b/y(+) wire.
3. Epistar chip RGB SMD5050 3in1 as light source.

Technical:

1. Input: DC12V an power supply is need.
2. Power: 1.44W/pcs.
3. SMD5050 4in1 as light source.
4. Output: 54lm @pure white 6500K

5. Lifespan: 5000+Hours


Packing:

1. 20/50pcs as a string
2. 100pcs in a anti-static bag.
3. 20~50bags in a carton.

Application:

1. channel letter light source.
2. light box light source.

Installation:

1. Double side adhere 3M tape on the back.
2. Screw through the screw hole.

Note:

1. Single color: Red/ Green/ Blue/ Yellow/ White(2700~13000K) all available.
2. Special color like Purple/ Pink/ Orange all available.
3. RGB with smart IC solution all available.



Check the specification below: (copyright reserved@Shenzhen Hongxing Lighting Co.,Ltd)

Highsong RGB LED module light.pdf Highsong RGB LED module light.pdf
Size : 307.782 Kb
Type : pdf
